Y-400 screen printing machine for pet/pp/pe cosmet

Products Visitors:316
Products description:





suitable for small factory  Y-400 screen printing machine for multi-color cosmetic tubes/bottles/containers



VIDEO LINK:  https://www.youtube.com/watch?v=wPt30UITnoc



Machpecisuitable for small factory  Y-400 scsuitable for small factory  Y-400 screen printing machine for multi-color cosmetic tubes/bottles/containers reen printing machine for multi-color cosmetic tubes/bottles/containers



Model No.

Y-400

Drive System

Servo Motor

Control System

Mitsubish PLC

Maximum Prinit Size

100*200mm

Maximum Print Height

50mm

Print Speed

2000-2200 pcs/hr

Up/Down Front/Back Drive

Servo Motor

Up/Down Stroke

150mm

Right/Left Stroke

400mm

Registration Accuracy Tolerance

≤0.2mm

Air Requirment

5-7 bar

Electric Source

220V 50Hz 1.5KW

Machine Size

1150*890*1430mm

Drying tunnel dryer

IR infrared: 6000W



dard Features:





• Mitsubishi PLC control system, programmable printing process, easy operation;
• Screen frame driven by servo motor moving up and down, with Taiwan double slide guide, fast up and
down moving, precision registration, stable and low noise;
• Panasonic servo motor system, synchronous belt transverse drive, and Taiwan double slide guide ensure
stable and precision printing, squeegee and flood bar speed is adjustable;
• Vacuum suction device ensure accurate print position when the object in transfer process.
• Worktable adjustment design good for different object thickness;
• Auto unloading device, and auto positioning system ensure the precision printing;
• Rotary table use precision splitter for fast and stable printing. Rotary table station has 2, 4, 6, 8 for
choice.

Picture :

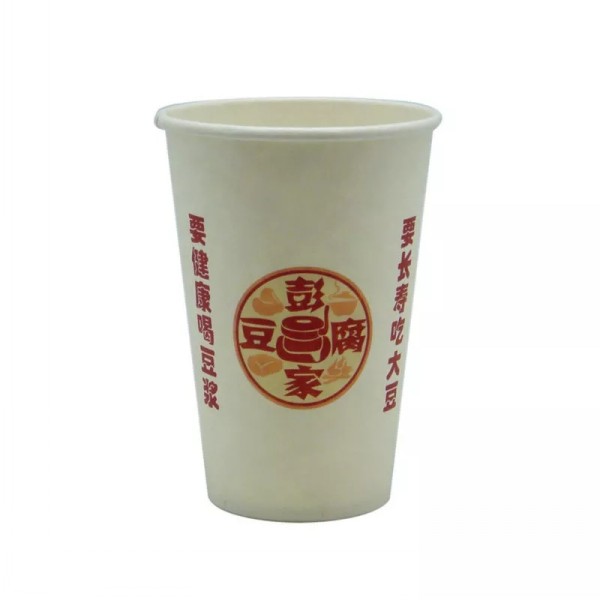

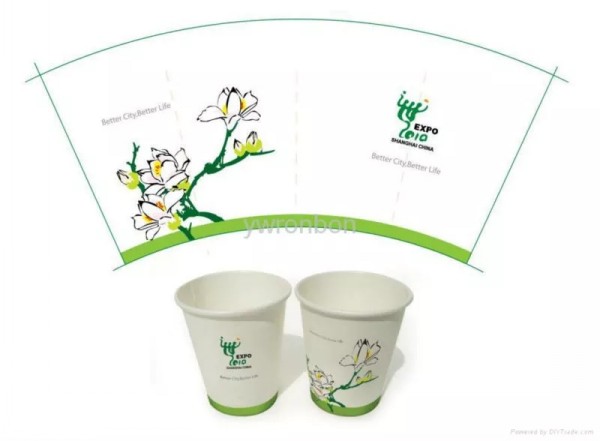

Printing sample:
