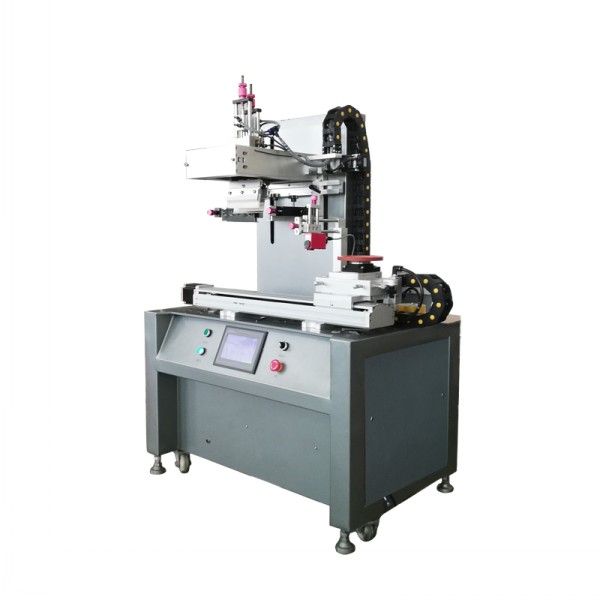

Flatbed Automatic Screen Printing machine

Products Visitors:216
Products description:
Product Description

Major Technical Specification



Model No.

S-2030PE screen printing machine

Max printing Area      (mm)

200x300

Max Work Table Size    (mm)

300 x 400

Max. Height           (mm)

80

Max Screen Frame      (mm)

350 x 520

Max Printing Speed     (pcs/hour)

1000

Power Consumption

110V /220V, 50Hz/60Hz, 50W, 6bar

Overall Dimension      (mm)

650x560 x 680



Features:

1. The squeegee printing system is designed in rail struction, which ensures extremely stable printing

2. New pneumatically printing head lifting design, provides convenient replacement and cleaning of squeegee, spatula or screen plate.

3. Printing stroke can be adjusted laterally to suit various screen plate sizes.

4. Equipped with shock absorber, provideing precise and stable operation for multi-color printing.

5. The worktable is radially designed to provide powerful suction result.

6. The printing table is equipped with 3 sets of micro-metric adjustment knobs for precision alignment of printing in vertical, transversal and angular directions.

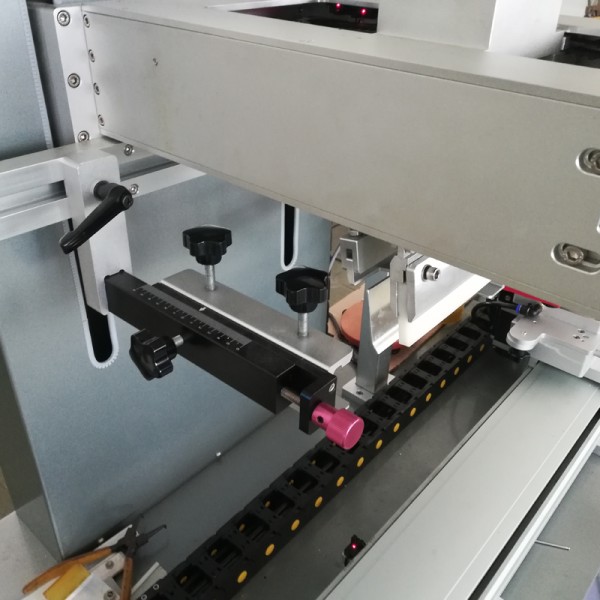

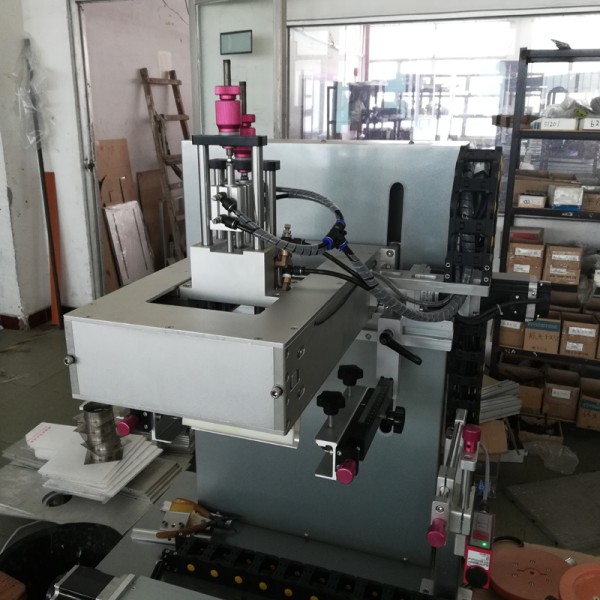

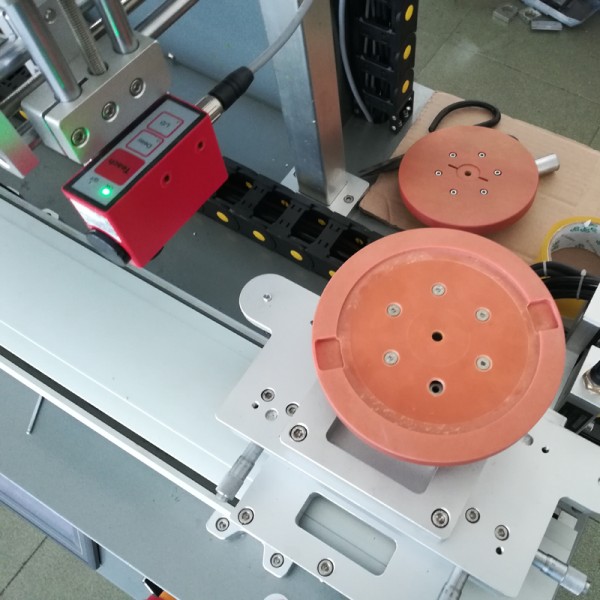

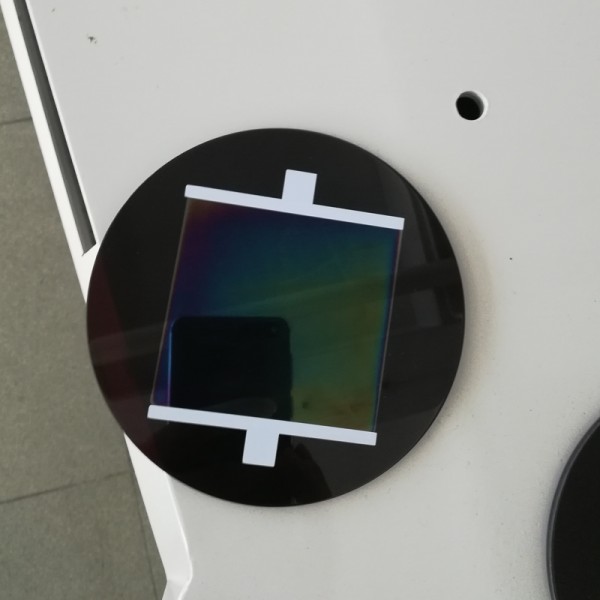

Real picture:
