Automatic Screen Printing machine with uv system

MODEL:
SIZE: 1000*920*1450mm
PACKAGE: wooden case


VIDEO LINK: https://www.youtube.com/watch?v=LWYYJKztg1M


Automatic Screen Printer with uv system/IR dryer system for cosmetic bottles/tubes/cups/containers

Product Description



Parameter:



ASP-M1

ASP-M2

ASP-M3

ASP-M4

ASP-M5

ASP-M6

Article size

Round container

Dia 25 – 90mm (H) 60 – 260mm

Oval container

(W) 40 – 120mm (H) 60 – 260mm

Printing Speed

Round container

60pcs / min

oval container

75pcs / min

Voltage / Frequency

AC380V / 50Hz

7 kw

14 kw

21 kw

28 kw

35 kw

42kw

Air compressor (bar)

5 – 7 bar (0.05 – 0.07Mpa)

Dimension (cm)

L

194

388

574

774

970

1164

W

140

140

140

140

140

140

H

160

160

160

160

160

160

Approximate Weight (kg)

1200

2400

3600

4800

6000

7200




Descriptions:

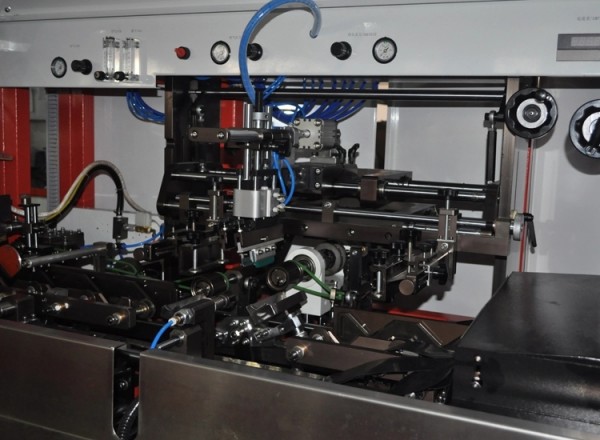

The series screen printing machine can print tube and jar from one color to six color , it equip automatic loading and unloading system, mechanical device combined with PLC control .




Reliability:


main components from Rexroth, Schneider, SMC, Mitsubishi, etc, other parts machined in-house by CNC directly from CAD, frame and structures made by high intensity casting aluminum and stainless steel




Easy operation:

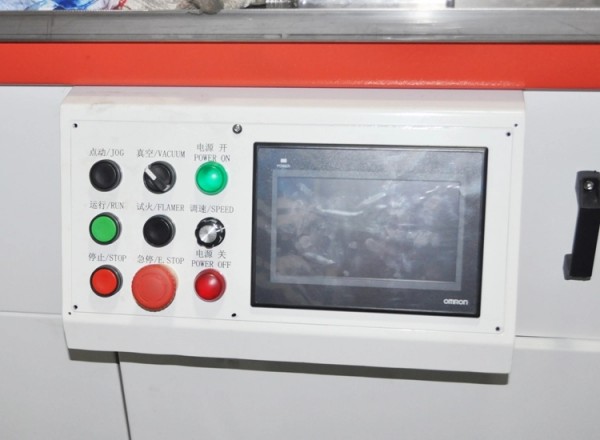

with PLC control system , touch screen interface, fast setup and quick tooling change over.




Printing management:


adopted with non-object no printing system, auto counter safety guard and faulty alarm device .




Options:


automatic optical registrations system, pre-printing & post printing coating system, are customize due to order



 Hengxin Printing equipment manufactures and sells automatic and semi-automatic machines for printing one to six colors by the screen frame transfer printing method.



Features :

The model comes as a one to six color unit
Can be fitted with one to six screen frames
Automatic feeding and injection of parts can also be added to these machines
Can be incorporated in in-line operations with other machines giving a completely automatic operations.

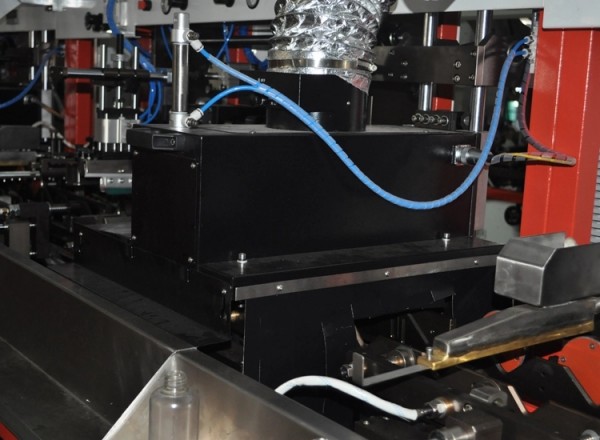

        Hengxin Printing equipment company manufactures and sells automatic and semi-automatic machines for printing one to six colors by the screen frame transfer method. Our automatic screen printing machines utilize a guildrail, load / unload system, UV/IR curing system for printing. Automatic feeding and injection of parts can also be added to our machines, or they can be incorporated in in-line operations with other machines giving a completely automatic operation.


        Screen printing machine is being used for more and more decorating applications in our industry. Its versatility in printing on flat surfaces makes it the ideal choice for your next printing requirements. Special formulation of inks giving them properties required by different industrial processes allows pad printing to be used on almost every substrate.


        Multicolor printing is possible since fast drying inks allow for wet on wet printing of parts, and the half tone process for multicolor screen printing is also available with the Hengxin Pat-A-Print process.


        Hengxin Printing Equipment Company can provide you with the Pat-A-Print machines, either standard or special design as well as all tooling, color matched inks, screen frames(standard or special) and our in-house engineering department to assist you in deciding which process and screen printing machine is best for your decorating needs. All our services are provided from our engineering department and our people are always on hand to answer questions or design that special screen frame, squeegee or formulate your ink. Our services are also fast, reliable and affordable. One call does it all.




Packaging & Shipping

Fully auto screen printing with all servo motor driven





Wooden case with dustproof film rap, steel belt stable on pallet, metal locks for feet
